Custom Dial Action
Universal parameter control for ANY mixer setting - effects, EQ, dynamics, gain, pan. The most flexible dial control action for advanced users.
Universal Parameter Control
The Custom Dial Action gives you complete control over any parameter in your Soundcraft UI series mixer. Whether it's effects sends, EQ bands, dynamics processing, or any other parameter, this action puts precision control at your fingertips.
Key Features:
- Control ANY mixer parameter
- Custom parameter specification
- Configurable step sizes
- Real-time value display
- Bidirectional synchronization
- Advanced parameter syntax support
Custom Dial Demo
See universal parameter control

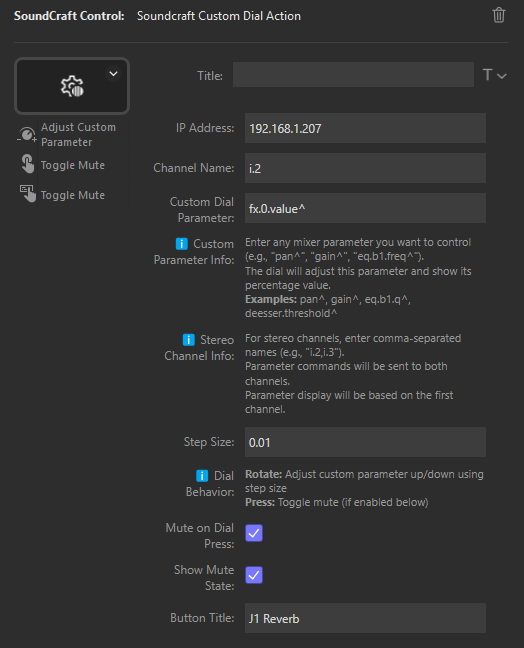

Configuration Options
IP Address
Enter your Soundcraft UI series mixer's IP address to establish the WebSocket connection.
Channel Name
Specify single channels (e.g., "i.2") or stereo pairs (e.g., "i.2,i.3"). Commands are sent to all channels, display based on first channel.
Custom Parameter
Enter any mixer parameter with ^ suffix (e.g., "pan^", "gain^", "fx.0.value^", "eq.b1.freq^", "deesser.threshold^") for precise dial control.
Step Size
Dial rotation increment per tick (0.01 to 0.1, default 0.05). Controls parameter adjustment sensitivity.
Mute on Dial Press
Enable mute toggle when dial is pressed down. Rotation adjusts parameter, press toggles mute state.
Show Mute State
Display [M] indicator when channel is muted alongside parameter value for comprehensive status.
Button Title
Set a custom dial label for easy identification (e.g., "EQ High", "Reverb Send", "Guitar Gain").
Common Use Cases
Effects Control
Control reverb sends, delay feedback, or any effect parameter with precise dial adjustments for creative mixing.
EQ Fine-Tuning
Adjust specific EQ bands (high, mid, low) with the precision needed for professional sound shaping.
Dynamics Processing
Control compressor threshold, ratio, attack, and release parameters for perfect dynamics control.
Advanced Routing
Manage complex routing parameters, aux sends, and monitor mixes with dedicated dial control.
Unlock Universal Parameter Control
Get complete control over every aspect of your Soundcraft UI series mixer with customizable dial actions.
